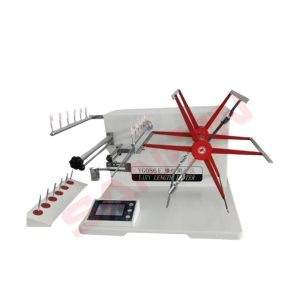

54″ Wrap Reel Touch

Application：

Used to determine the linear density of various yarns (or British count), for testing the strength of the yarn test, and also suitable for the determination of the linear density of chemical fiber filament deformed silk.

Standards：ISO2060, ASTM D1907, GB/T4743, GB/T14343, GB/T6838 etc.

Specification:

1. The number of yarn tubes tested at the same time: 6 PCS
2. yarn spacing: 65mm (6 ingot time)
3. 54±1/16in /1.37m (export only)
4. frame speed: 30 ~ 300r.p.m
5. the selection range of yarn coil number: 1 ~ 9999
6. Swing width: 35mm
7. single yarn tension range: 0 ~ 100CN
8. Power supply: 220V,50Hz
9. Weight: 75 Kg
