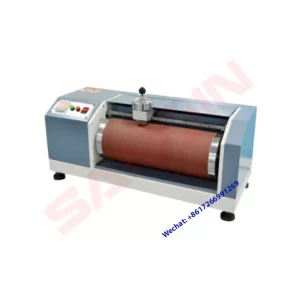

DIN Abrasion Tester SX-FZ30
APPLICATION:
DIN Abrasion Tester， applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
STANDARDS:
DIN-53516, ISO-4649, GB/T9867, ASTM D5963, ISO 20344 8.3 etc.
Specifications:
1.wheel diameter:150mm
2.abrasion stroke:40 ± 0.2M
3.Fixture lateral displacement:4.2mm / wheel each lap
4.stroke:20m/40m presetting
5.grips lateral displacement:4.2 ± 0.04rpm
6.wheel rotate speed:40 ± 1cpm
7.Measuring way: Auto/Manual presetting
8.load:2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N
9.Specimen size: Dia 16mm, thickness at least 6mm
10.Emery cloth Specification:60 #, seam is less than 2mm
11.sand paper:60 Germany
12.Power:220v 50hz
