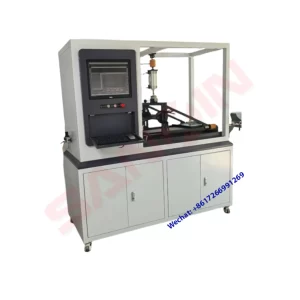

Dynamic shoe anti-slip Resistance tester SX-XZ09

APPLICATION:
A specified load is applied through a different medium (stainless steel plate, tile or specified). Set the specified number and speed of friction. To measure the sole friction coefficient to determine the anti-slip of the shoe;
STANDARDS:
GB 21148-2020 ISO 20345-2011 GB/T28287,EN ISO13287,SATRATM144，ASTM F2913,GB/T3903.6-2017 etc.

Test items:
1.Forward heel slip
2.Backward forepart slip
3.Forward flat slip



Specifications:
Two specifications;
1, vertical pressure: 0 ~ 1000N can be preset;
2, horizontal tension: 0 ~ 1000N;
3, test speed: (0 ~ 1.5±10%) m/s adjustable;
4, movable plate stroke: 0 ~ 200mm;
5, static contact time: 0 ~ 5s;
6, shoe last fixing device: 0 ~ 30;
7, vertical sensor: 1KN one (American force transfer disc type);
8, horizontal sensor: 1KN two (American force disk type);
9, horizontal tension accuracy: ±0.5%;
10, vertical pressure control accuracy: ±0.5%;
11, vertical pressure control time: 0 ~ set value, less than 0.2 seconds;
12, measurement and control software with 50N normal contact force, preset normal force control. The system has fast response and small control deviation.
13, planetary reducer: reduction ratio 1:15, running low noise;
14. Adopt precision linear guide rail;
15, Taiwan research new high-end brake clutch; When the test program is ready, the motor needs to maintain real-time operation to reach the predetermined speed state, and the entire sliding distance is maintained at a uniform speed by switching the clutch.
16, transmission synchronous belt: South Korea Samsung;
17, displacement sensor (cable encoder) : accuracy 0.001mm;
18, work surface: 600*320mm (stainless steel);
19, control motor: Japan Panasonic 750W servo motor;
20, pressure system: Japan SMC proportional valve control, computer setting, automatic pressure;
21. Installation frame: made of aluminum alloy;
22, control system + software: high-speed acquisition system and special test software, built-in EN 13287, SATRM 144, ASTM F2913, GB/T3903.6 and other test methods directly called;
23, the force cylinder: the use of Taiwan Yadeke cylinder;
24, protection device: leakage protection, pressure overload protection, air buffer travel limit protection. Emergency stop switch protection;
25, wedge Angle gauge: 7°;
26, compressed air: minimum 6 bar, with cleaning device after grinding (pneumatic spray gun);
27, the instrument with folding last quick loading frame;
28, instrument type: desk type
29,Weight (kg) : about 300KG;

Standard accessories:
1, host 1Set;
2, special can fold the whole shoe spring shoe last (40, 41, 42, 43, 44) each 1 pair (used to install the whole shoe or sole test products);
3, folding last quick loading sample frame 1;
4, EN 13287 mechanical prosthetic foot (4 sets/set, for shoes under 250 shoe size installation);
5, 7 degree Angle block (for shoe Angle setting);
6, EN 13287 (S96) standard rubber 1 piece (for ceramic tile and instrument calibration);
7, standard glue test rack 1 (for ceramic tile and instrument calibration);
8, sole polishing block 1;
9. Polishing and purging device (pneumatic spray gun);
10, P400 silicon carbide sandpaper 1 package (50 pieces);
11. 1 set of EN 13287 standard tiles (GB/T 28287+EN 20344+GB/T 3903.6-SRA standard road media);
12, EN 13287 stainless steel test plate 1 (GB /T 28287+EN 20344 SRB standard road medium);
13, GB/T 3903.6:2017 standard glass plate 1;
14, SATRA TM 144, ASTM F2913 shoe leather mounting Angle block 1;
15, 1 bottle of sodium dodecyl sulfate (SRA tile test wet road preparation);
16, 1 bottle of standard glycerol aqueous solution, 1 bottle of ordinary glycerol (SRB stainless steel plate test wet road preparation);
17, 1 roll of imported super glue (strong adhesive, glue does not adhere after tearing, used for standard glue, sole, Tianpi and other tests);
18, computer (host Lenovo original, monitor Dell), printer (Canon) each;
19. 1 copy of product manual
