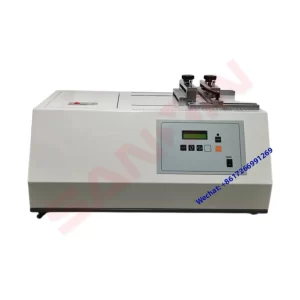

Elastic fatigue tester SX-XZ24

APPLICATION:
The elastic band test piece is installed on the elastic band fatigue resistance testing machine, and the elastic band is driven by the fatigue resistance testing machine to carry out reciprocating stretching within the tensile range of its effective elongation. After a certain number of tests, the fatigue resistance of the elastic band within the tensile range of its effective elongation is evaluated according to whether the elastic band test piece is damaged.
STANDARDS:
SATRA TM164、SATRA TM103、FZT63006-2010 etc.

Specifications:
1. Fixture width: 140mm.
2. Minimum distance of fixture: 60mm(adjustable).
3. Test speed: (65±5) times/min.
4. Maximum stroke: (0 to 150) mm adjustable.
5. Counter: LCD 99999999
6. Sample group: 1 group.
7. Volume: (65x40x40) cm.
8. Weight: about 61kg.
9. Power: AC220V,50HZ.
