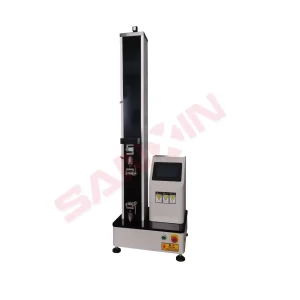

Electronic Lea strength tester
Application:
It is used for mechanical property tests such as puncture, tensile, tear, bursting, fixed elongation, fixed load, elasticity, seam slippage and peeling of composite products such as textile materials and clothing fabrics.
Test Mode:
For the constant velocity elongation (CRE) type, take the specified sample, use this instrument to stretch it at the specified speed until it breaks, and simultaneously record the breaking strength and elongation at break.
Standards: ISO13934.1、ISO13935.1、ISO9073.3/4、ASTM D5035、ASTM D2261, GB/T3923.1etc.
Specifications:
- Maximum test force: 5000N
- Minimum reading value of displacement: 0.01mm
- Relative error of indication: ±1%
- Relative error of repeatability of the test force indication: ≤1%
- Relative error of zero point of the test force: ±0.1%FS
- Speed range: 0.1-800mm/min
- Test space: 600mm
- Fixture: One set of tensile fixture (Other functional fixtures can be customized according to the user’s testing requirements)9.
- Power: AC220V,50HZ
- Weight: 100 kg
