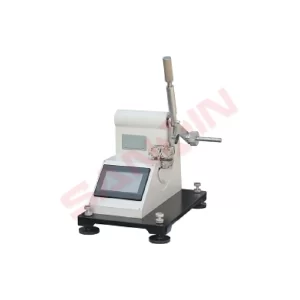

Elmendorf Tear Tester SX-033B

Application:

Used for measuring the tear resistance of various woven fabrics, as well as for measuring the tear resistance of paper, plastic cloth, film, electrical tape, and metal sheets.

standards:

GB/T 3917.1-1997 ASTM D1424/5734 ISO 1974/9290, etc

Specifications:

1. The digital decoder ensures precise testing, with a testing accuracy of ≤ ± 0.02% F · S
2. Adopting a 5.7-inch Hytek touch screen operation interface, with Chinese and English menus, easy to operate
3. High resolution encoder; Pneumatic clamping, efficient and stable
4. High speed intelligent chip with fast computing speed.
5. Yadeke electromagnetic valve control, automatic cutting, reduces operating intensity
6. Chinese report printing, supporting PC interface, easy access to test results
7. RS232 serial port, can be connected to a computer or operated separately.
8. Multiple measurement units (GF, cN, cP) can be selected to meet different standard requirements

Basic technical specifications:

1.  Range: 0-16N, 0-32N, 0-48N, 0-64N, 0-80N, 0-96N, 0-112N, 0-128N;
2. Tear length: 43mm. Test accuracy ≤ ± 0.02% F · S
3. Cut length: 20 ± 0.2mm
4. Sample size: 100 x 63mm
5. Sample clamping: pneumatic
6. Data printing: Chinese report printing
7. Working power supply: AC220V 50Hz
8. External dimensions: 560 x 420 x 530mm (L x W x H)
9. Weight: 68K
