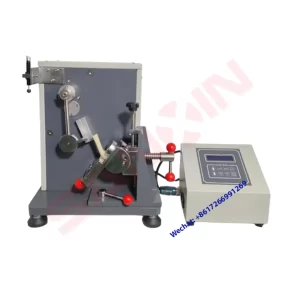

High Heel Fatigue Tester SX-XZ28

APPLICATION:
This machine is mainly to test the plastic heel, simulate women’s shoes in the case of wearing, heel resistance to continuous impact. The machine on the women’s heel, once per second, free fall movement, 0.68J energy, impact hammer from the horizontal position to the vertical position, impact sample until the heel breaks or reaches the required number of fatigue.
STANDARDS:
QB/T2864、EN ISO19956、BS-5131、SATRA TM21 etc.
Specifications:
1. Pendulum rod diameter: (12.5±1.0) mm.
2. Impact energy: (0.68±0.02) mm.
3. Pendulum drive shaft center distance from impact hammer center: (152±2) mm.
4. Impact hammer: diameter (57±1) mm, thickness (20±1) mm.
5. Impact head: length (35±2) mm, width (20±1) mm, radius of round head (3±0.5) mm, thickness (6±0.5) mm.
6. The center of the impact hammer at the top of the impact head: (63.5±2) mm
7. Test speed: (60±1) r/min.
8. Counter: LCD LCD display 0-9999, 9999.
9. Weight: about 68kg.
10. Power supply: AC220V, 50hz
