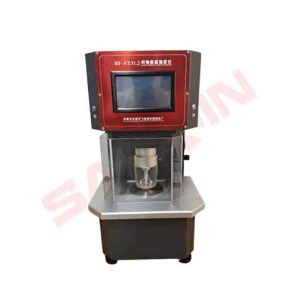

Hydraulic Fabric Bursting Strength Tester BF-FZ31.2

Application:

This product is suitable for testing the bursting strength (pressure) and expansion degree of knitted fabrics, non-woven fabrics, leather, geosynthetic materials, etc.

Features:

1. It adopts full-screen control, with Chinese (English) menu operation (two languages are available), and is automatically controlled by a microcomputer program for bursting.
2. The sample clamping surface is a specially toothed clamping surface, and the clamping force is adjustable. Pneumatic clamping, the clamping force of the sample and the bursting force are on the same axis. It can be fully applicable to the clamping of various materials.
3. The test area can be replaced to meet the requirements of different standards.
4. Equipped with a servo driver and motor, the hydraulic oil volume rate is 8ml/min to 500ml/min±10% (adjustable). Feedback regulation precisely controls to ensure that the sample breaks within 20±5 seconds. It truly reflects the bursting performance of the sample.
5. Multiple test results: bursting strength, bursting force, diaphragm pressure, bursting height, bursting time;
6. Add auxiliary testing methods such as constant pressure and constant height.
7. Equipped with a printer interface and an online interface.

Standards: GB/T7742.1-2005、FZ/T60019、FZ/T01030、ISO 13938.1、ASTM D 3786、JIS L1018.6.17 etc.

Specifications:

1. Test method: Diaphragm bursting method;
2. Sample clamping and clamping method: The sample clamping surface is a specially toothed clamping surface, automatically pneumatic clamping, and the sample clamping force and bursting force are on the same axis.
3. Range and accuracy of hydraulic oil volume rate: 8ml/min to 500ml/min (adjustable);
4. Test area: Two areas, 50cm ² (Φ79.8mm±0.2mm) and 7.3cm ² (Φ30.5mm±0.2mm), are interchangeable. (Customizable)
5. Bursting strength measurement range and resolution: 0-2000KPa, resolution: 1KPa;
6. Bursting strength control accuracy: ≤±1%;
7. Expansion measurement range: 0.1 to 70mm, accuracy ±0.1mm;
8. Control operation: Full-screen control, with both Chinese and English menu operation;
9. Test results: Bursting strength, bursting force, diaphragm pressure, bursting height, bursting time;
10. Testing methods: Three testing methods, namely constant speed method, constant pressure method and constant height method;
11. Power Supply: Ac220V,50Hz,600W;
12. Dimensions: 630×440×675mm (L×W×H),
13. 13.Weight: 150Kg;
