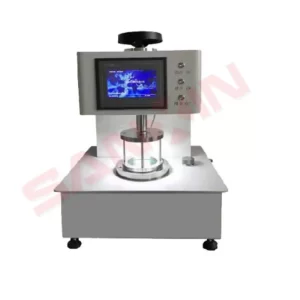

Hydrostatic Head Tester SX-FZ32

Application：

The hydrostatic head tester accurately and swiftly determines the resistance of fabrics (coated, uncoated & non woven) to water penetration under pressure while firmly clamped in the test rig of standard area, by means of dynamic test method and static test method.

Used for testing the water permeability of compact fabrics, including canvas, coated fabrics, cover cloth, rainproof clothing fabrics and geotextile materials, etc.

Standards : GB/T 4744-2013, FZ/T 01004-91, ISO811, AATCC127, JISL1092, etc.;

Feature :

1.7-inch color LCD touch screen display, Chinese menu, simple and intuitive operation;

2. One-button drainage function, more convenient test;
3. Built-in 5 kinds of test functions, fully meet various test standards;
4. Built-in multi-unit selection, no need to convert test results;
5. The use of high-precision pressure sensor, accurate and stable test results, good repeatability;
6. Equipped with built-in water tank, and with water shortage protection and other functions.

Specifications:

1. Measuring range and accuracy: 1Pa ~ 200kPa, Accuracy: 0.5%
2. Test range：100cm2；
3. Water pressure rise rate: 0-30000Pa/min;
4. Display precision: ≤10Pa;
5. Test single position: Pa; KPa; mmH2O; cmH2O; mbar;
6. Working mode: 5 kinds;
7. Display mode: color LCD touch screen, Chinese and English menu;
8. Water tank capacity: 3000ml;
9. Power supply: AC220V± 10% 50Hz;
10. Dimensions：550*400*800mm；
11. Weight：80kg。
