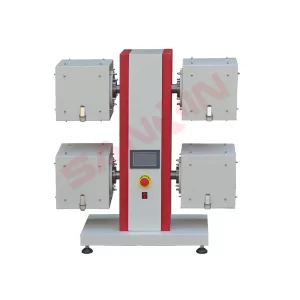

ICI Pilling & Snagging Tester 4 head

Description

This ICI pilling tester comes with a metal box that is sturdy and not deformed. It has a large screen color touchscreen display for viewing testing reports. ICI pilling tester offers a high-quality rubber cork gasket that is foldable and easy to move anywhere. Also, this taster can be used for testing wool, knitted fabrics, and other fabrics that are prone to pilling.

Applicable Standards

• ASTM D3939, ISO 12945-1, BS5811, IWSTM152, JIS L 1076, GB/T4802.3, ISO12945-1, Marks & Spencer P18A

Full Specification:

• Quantity of pilling boxes: 4 pieces
• Box space: 235 × two hundred and thirty-five × 235mm (L × W × H)
• Rolling speed of the box: 60 ± 1r/min
• Rolling times of the box: 1 to 999999 times (any setting)
• Sample Tube Size
  • Weight, and hardness: 31.5 x 140mm
  • Wall thickness: 3.2mm, weight 52.25 gm
  • Shore hardness: 37.5 ± 2
• Inner lining Rubber Cork
  • Thickness 3.2 ± 0.1mm
  • Shore Hardness: 82-85
  • Density: 917-930Kg/m3
  • Friction Coefficient 0.92-0.95
• Power Supply: AC220V, 50Hz, 400W
• External Dimensions (L x W x H): 780 x 480 x 880mm
• Weight: 70 Kg
