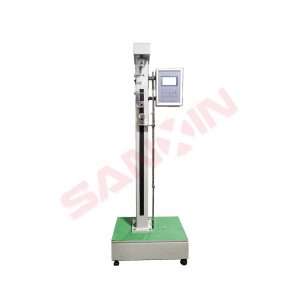

Lea Strength Tester SX-025
Application:
Used to measure strength of skein of pure and blend spinning of cotton, wool and chemical fiber etc.
Standards：ISO6939
Specifications：
- Test method: Test the breaking strength of the sample according to the national preferred constant velocity elongation (CRE) test principle. The entire program is controlled by a computer and its peak strength is recorded.
- Operation mode: large-screen LCD display, Chinese menu operation.
- Force measuring system: High-precision force measuring sensor is adopted.
- Range of strength： 0~450(lbf)，Load index value: 0.1lb； Force measurement accuracy: ≤± 1%F •S
- Width of upper and lower hooks：1/4、3/8、1/2、5/8、3/4、7/8、11/8 inch
- Dropping speed of lower hook：600mm/min±5%
- Drawing speed: 20 ~ 600mm/min (adjustable)
- Response speed: 20 ~ 600mm/min (adjustable)
- Effective distance between upper and lower hooks：635mm
- Data processing capacity: times ≤ 300 times
- Maximum elongation：200mm， elongation resolution：0.1mm
- dimensions：865×430×1750mm(L×W×H)
- Power：AC220V±10％ 50Hz
- N.W: About 130 kg
