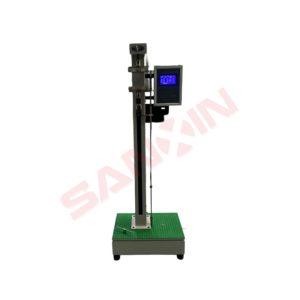

Lea Strength Tester SX-026

Application:

electronic fabric strength machine is used for fabric tensile strength test, tear strength test.

Standards: FZ/T 60005-1991,GB/T 3917 etc.

Specifications:

1. Test method: according to the country’s preferred isokinetic elongation (CRE) test principle test samples.
2. Operation mode: It can be operated by computer software; Can also be large screen LCD display, Chinese menu type operation.
3. Force measurement system: the use of high-precision force sensor.
4. Range: 3000N and 1000N can be selected.
5. Load indexing value: 1N and 0.1N
6. Force measurement accuracy: ≤± 1% F•S
7. Data sampling frequency: ≥100Hz
8. Drawing speed: 20 ~ 600mm/min (adjustable)
9. Response speed: 20 ~ 600mm/min (can be set)
10. Speed index value: 1 mm/min
11. Sampling length: optional
12. Data processing capacity: ≤300 times
13. Data output: 1. CRT color display or large LCD display, 2. Inkjet printer or needle printing The machine prints test data.
14. 14.Power AC220V± 10% 50Hz
