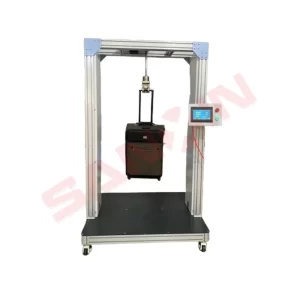

Luggage Impact Testing Machine SX-C6
Product Description：
For a certain load, impact test such as handlebar and strap at the speed of 20 times per minute or reciprocating movement test of pull rod shall be carried out to check whether the handle, side handle, pull rod, fastener and sewing of the case are damaged (test pull rod case, handbag and backpack).
Design standard: QB / T2922-2018 luggage oscillation impact test method QBT 2155-2018 travel luggage, QBT 1333-2018 carry on bag.
Main technical parameters:
- Control mode: color touch screen (convenient and practical), man-machine interface operation mode.
- Impact height: 0-8 inch adjustable
- Vibration mode: spring type 1.79kg/mm
- Test method: two kinds (1. Impact 2. Suction cup does not release reciprocating fatigue)
- Times setting: 0 ~ 9999, automatic shutdown
- Test speed: 0 ~ 20 times / min, adjustable
- Auxiliary function: in the middle of the test piece falling, it will stop automatically
- External dimension: 285 * 120 * 120cm
- Power supply: av220v 50Hz
- Air source above 0.6MPa
Name:Luggage walking bump testing machine(Method B)
