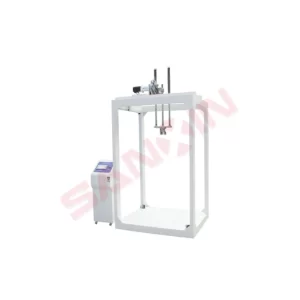

Luggage oscillation testing machine SX13

Product Description: The luggage oscillation impact testing machine is mainly used to test the resistance to oscillation impact of luggage handles, stitching lines, and overall structures. The method is to load the specified load on the test object and conduct 2500 tests on the specimen at a speed of 30 impacts per minute and a stroke of 4 inches. The test results can be used as a reference for quality improvement.

Compliant with standards: QB/T 2922，QB/T1333, etc.

Technical parameters:

1. Control method: Touch screen
2. The impact height is 4 inches (0-6 inches) adjustable
3. Vibration mode: Spring type 1.79kg/mm
4. Test speed adjustable from 5-50 cmp
5. Load： 50Kg
6. Gas source： 2P (self-contained air compressor)
7. Counter： LCD 0-999999 times 6-digit display
8. Machine size： 1400 × 1200 × 2500mm (length × width × height)
9. Weight： approximately 390Kg
10. Power supply ：AC~220V 50Hz 800W
