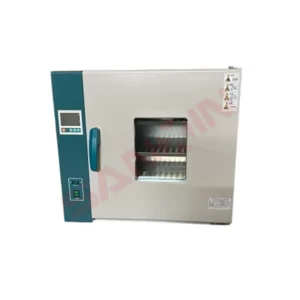

Oven WG-9070AB

Application:

Oven is used for drying, testing, baking, heat treatment, etc.

Features:

1. Structure: Adopt the overall design structure, the studio, electrical appliances and control operating system are installed in one, and the panel operation system is located on the left.
2. Box outer wall material: cold-rolled steel plate outer surface electrostatic spraying treatment;
3. Box inner wall material: high-quality stainless-steel plate;
4. Door and insulation sealing material: single door, equipped with high temperature silicone rubber sealing strip;
5. Standard configuration: 1 change/exhaust adjustment device, 1 power cord;

Specifications:

1. Material inside: stainless steel
2. Temperature range: R.T. +5-300℃;
3. Resolution; 0.1 °C
4. Temperature fluctuation: ≤± 1°C;
5. Heating time: 3.~4°C/min;
6. Total installed power: 15.0Kw;
7. Power supply voltage: 220V
8. Inner box size: 400x450x400mm
9. Capacity: 80 Litter
