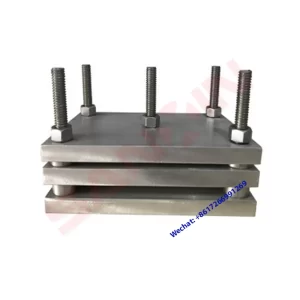

Rubber Compression Set Fixture Tester SX-XD10

APPLICATION:
Rubber Compression Set Fixture Tester is s used especially to test the static compression for rubber. Place one standard specimen between parallel flat plates, revolve the screws then compress it a certain range of percentage and then put into the oven under the specified temperature for a certain time period then take it off cooling for 30 minutes to measure its thickness for calculating its permanent deformation rate.
STANDARDS:
JIS-K6301; ASTM D395 Method B, ASTM D3574 TEST D, GB/T 7759, GB/T 6669; ISO 815, ISO 1856, CNS-3560, 10487; etc.
Specifications:
1.Specimen rubber: Diameter: 28.68mm, Thickness: 12.7mm
2.Foam plastic:50 x 50 x 25mm
3.Material: Stainless steel
4.Spacer rings thickness:2.5mm, 4.5 mm,5mm, 6.25mm, 7.6mm, 8.9mm, 9.5mm,10.2mm, 12.5 mm
5.Weight:12 kg
