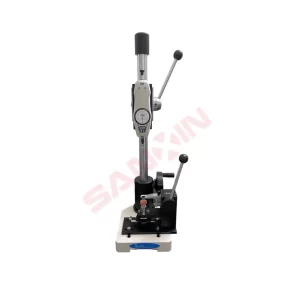

SafGuard Button Pull Test Machine
SafGuard Button Pull Test Machine is the unique safety test instrument that provides a means to accurately measure how safe accessories are attached in a product. It is also used to compare a variety of accessories from different vendors in the process from product design to production so that we can safeguard our consumers.
It is a simple but effective design mainly consisting of a high precision gauge, a sturdy stand, and special grips/clamps. It requires very little training. A sample required by standards & regulations is to fix horizontally (constant force is applied to secure the sample) so that snap or other accessories attached in fabric can be clamped into. Moreover, a standard weight is also offered so that it can be regularly checked if it meets the safety requirements.
The SafGuard Button Pull Test Machine from SafGuard offers exact testing capabilities, and the cost in BD reflects its progressed highlights and unwavering quality. Over all, SafGuard guarantees that the STA-0020 conveys both exactness and user-friendliness. Furthermore, this machine meets the most noteworthy industry guidelines, making it a beat choice for professionals.
After all, toughness and execution are pivotal in testing gear. If you contribute in the , you will promptly take note an advancement in your testing forms. A short time later, you will coordinated this machine into your workflow consistently. After that, you will see more reliable and solid results.
Why You Choose SafGuard Button Pull Test Machine?
The SafGuard Button Pull Test Machine not as it were gives tall execution but too comes with fundamental adornments for quick utilize. All in all, SafGuard plans this machine to handle the thorough requests of present day testing situations. They compromise not one or the other on quality nor toughness, guaranteeing a strong choice for any testing lab. Too, the cost in BD makes the open to a wide run of users.
All things considered, the SafGuard Button Pull Test Machine Button Drag Test Machine includes critical esteem to any testing setup. No sooner did this machine ended up accessible than it got positive criticism for its execution and unwavering quality. In spite of the fact that it highlights progressed innovation, the remains simple to work, requiring negligible training.
FEATURES OF SAFEGUARD BUTTON PULL_TEST MACHINE
- Including standard accessories.
- Including 15 kg LBS Calibration Weight.
- Including 30 kg/295N Japanese IMADA Measuring Meter.
- Standard BV, JAPAN Product Liability Law | ASTM F963, EN 71, M&S P115A (for snap) | P115 (for button) | ASTM D4846-96.
Better Cost-Effective And Quality Design:
- Ergonomically Constructed: force meter holder can retain upwards during sampling.
- User-friendly: side-wheel operation.
- Economically exchangeable: with a plenty of different of grips/clamps.
- Longer Stand Spacious: for more applications.
Best Test Reproducibility and Repeatability:
- Constant Clamping Force in Lower Fabric Clamp (STA-0042) to minimize operation error.
- Minimum Clamping Failure & Slippage chiefly because our Universal Grip (STA-0041) can accurately secure snap and does not damage the fabric.
Good Recognition:
- Unlike others, SafGuard has been adopted by all world’s leading textile testing labs (e.g. BV MTL_ACTS, Intertek, SGS & STR…) & the most influential retailers / renowned brands (e.g. GAP, H&M, & Ralph Lauren children swear).
- SafGuard is Patented (No. 2005200005331.0)
SPECIFICATION OF SAFEGUARD BUTTON PULL_TEST MACHINE (STA-0020)
| Name | Details |
|---|---|
| Model | SafGuard |
| Brand | SafGuard |
| Origin | Japan Body Assembling – Hong Kong |
| Meter Load Capacity | 40kg |
| Accuracy | ±0.1% of full scale |
| Readability | 0.1N |
| Dimensions | 43 × 49 × 109 CM (L x W x H) |
| Calibration Weight | 15 LBS included |
| Gross Weight | 45 kg |
ACCESSORIES OF SAFEGUARD BUTTON PULL_TEST MACHINE (STA-0020)
| Name | Details |
|---|---|
| Hook adapter | 1 Piece |
| Grip Carabiner | 1 Piece |
| Upper Tip-Top Grip (STA-0118) | 1 Piece |
| Upper Grasp Button Grip (STA-0005) | 1 Piece |
| Calibration Weight 15 LB (STA-0004) | 1 Piece |
| Upper Stud Grip (STA-0002) | 1 Piece |
| Upper Long Nose Vise Grip (STA-0007) | 1 Piece |
| Lower Fabric Clamp (STA-0042) | 1 Piece |
| Lower Grasp Button (STA-0006) | 1 Piece |
| Lower Grasp Button for thin fabrics (STA-0006E) | 1 Piece |
| Bench Top Stand with flywheel (STA-0040) | 1 Piece |
| Lever Arm Set | 1 Piece |
| Operation Manual | 1 Piece |
| IMADA™ Force Gauge FB-30 K made in Japan (STA-0020) | 1 Piece |
OPTIONAL ACCESSORIES OF SAFEGUARD BUTTON PULL_TEST MACHINE
| Name | Details |
|---|---|
| Zipper test kit (STA-0084) | 1 Piece |
| Upper Three-Pronged Grip (STA-0008) | 1 Piece |
| Multi-function Vise Clamp (STA-0084) | 1 Piece |
| Goggles (STA-0035) | 1 Piece |
| Small Part Cylinder (STA-0037) – Plastic | 1 Piece |
STANDARD REFERENCE OF SAFEGUARD BUTTON PULL TEST MACHINE
- BV, JAPAN Product Liability Law,
- ASTM F963, EN 71, M&S P115A (for snap),
- P115 (for button),
- ASTM D4846-96 many others.
TEST INTERPRETATION OF SAFEGUARD BUTTON PULL TEST MACHINE
There are lots of different test interpretations. Take snaps as an example. All snaps usually test to withstand attachment strength of 17 pounds (or 7.73 kg) for 10 seconds. If not, it is deem to mechanically unsafe unless it is not a small part & there is no sharp edge/point
APPROVED & ADOPTED BY SAFEGUARD BUTTON PULL TEST MACHINE
- World leading retailers / renowned brands: e.g. GAP, H&M, LEVI’S, M&S, NEXT, VF & Ralph Lauren, etc.
- World leading textile testing labs: e.g. BV, CTL, INTERTEK, SGS, STR, TUV, etc.
PACKING INFO OF SAFEGUARD BUTTON PULL TEST MACHINE (STA-0020)
| Name | Details |
|---|---|
| Gross Weight | 45 kg |
| Carton | (43 x 49 x 109)cm |
| H.S. Code | 9024 8000 |
