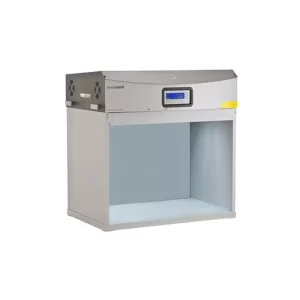

SpectraLight QC X-rite (SPL QC)
The SpectraLight QC is the light booth of choice for color-critical visual assessment of large and small items under daylight and other lighting conditions.The SpectraLight QC features seven light sources, more than any other light booth or luminaire on the market.This includes CIE Daylight, Cool White Fluorescent, Incandescent “A” & 2300K/Horizon, UVA, and two more fluorescent types (choice of U30, U35, TL83, and TL84).
Specifications
| Model | SPLQC |
| Manufacturer | X-rite |
| Origin | USA |
| Light Source | Daylight Light Source: D50 or D65
Fluorescent Light Source: CWF, UVA, and two of U30, U35, TL84 Incandescent Light Source: CIE A, ‘Horizon’ a dim incandescent at 2300K |
| Total Light Sources | 7 |
| Humidity | Rh 0 to 95% max (non-condensing) |
| Operating Temperature Range | 32°F to 95°F / 0°C to 35°C |
| Storage Temperature Range | -40°F to 158°F / -40°C to 70°C |
| Material | Steel |
| Viewing Area (length, width, height) | 35 in x 23 in x 23 in / 90 cm x 58 cm x 58 cm |
| Dimensions (length, width, height) | D 24 x H 27.6 x W 37.2 in / D 610 x H 700 x W 945 mm |
| Instrument Display | LCD Screen |
| Languages Supported | English/Chinese |
| Voltage | 100, 115, 230V |
| Warm Up Time | Instant On |
| Wattage | 1150W |
| Industry Standards | ISO: 3664, 3668, 13076, 23603
AATCC: EP9 ASTM: D1729 SAE: J361 DIN: 6173 CIE: S012/E, 51.2 BSI: BS 950 Pt.2 |
| Calibration | Yes |
| Lamp Timer | Yes |
| Safety | UL Listed |
| Service Indicator | Yes |
| UV Metamerism Index | Grade B |
| Visible Metamerism Index | Grade A |
| Warranty | 12 Months |
