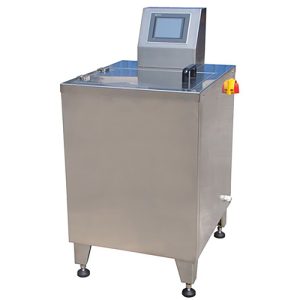

Washing Fastness Tester

Introduction:

Suitable for cotton, wool, silk, linen, Chemical fiber, mixed and dyed textile resistance test, can also be used to assess dye resistance to the performance of the resistance to dye, for the printing and dyeing industry, Dye industry, textile quality inspection department and scientific research units.



Standards: ISO 105-C6,

AATCC-61/86/132/151/190, ISO-105C01/C02/C03/ C04/C06/C07/C08/C09/ D01/E03 /E12, BS 1006, M&S C4A/C5/P3B/C10A/C11/C26/C37/C49A/P137, NEXT 2/3/5, IWSTM 7/115/177 /193/199 /240/241, FTMS 191-5610/5622



Specifications:

1. Sample cup volume: 550mL±50mL or 1200ml±100ml, supplied as per user’s order
2. Maximum loading capacity: 12 cups, supplied as per user’s order
3. Rotating frame speed: 40r/min±2r/min
4. Motor: 180W, 380V
5. Drain pump power: 30W
6. Heating power: 5000W/studio.
7. Preset time: 1min～9999min
8. Power supply: AC three-phase 380V±10% 50Hz

Main Features:

1. Automatic water replenishment feature.
2. This instrument is controlled by a microcomputer, with touch screen input and display data. Guided by the interface, it can complete time, temperature setting, standard selection, control drainage and time reset, correct time and date, adjust display screen brightness, view temperature-time curve, and realize inching, running, and stopping control. Simple operation, clear at a glance.
3. Anti-dry burning function, equipped with a contactless induction switch. In the absence of water, the heating function will not start, effectively protecting the instrument from being burned.
4. Motor thermal protection function, for long-term continuous work, when the set temperature is reached, it enters the protection state, the motor stops working, and can resume work only after the temperature drops, effectively avoiding unnecessary failure losses.
5. The machine has a time alarm reminder function. When the set time is reached, the display will remind you and the buzzer will sound.
6. The drive shaft of this machine is straight-through, and the fixed ends are all made of stainless steel waterproof bearings, so there will be no overflow. It uses double belt drive to make the inching action soft when loading and unloading the test cup, and the noise is low during the experiment.
7. The sample cup holder of this machine can be selected as a composite type, which can load 550ml cups and 1200ml cups respectively, and is made of all stainless steel.
8. The shell of this machine, the working room and the control box shell are all made of 304 stainless steel, which is beautiful and corrosion-resistant.
9. Four universal adjustable feet, stable and firm
10. All stainless steel positioning hinges, the preset upper cover opening angle is reasonable, and it will not fall back by itself.
11. This machine is equipped with a drainage pump, and the downpipe can be placed in the outlet pipe position for a long time. Just press “drain” on the touch screen to complete it. The operation is simple and saves the tedious work of matching downpipes.
12. Special reminder: The cup holder of this machine rotates counterclockwise. If it rotates clockwise after power on, please adjust the power supply.
