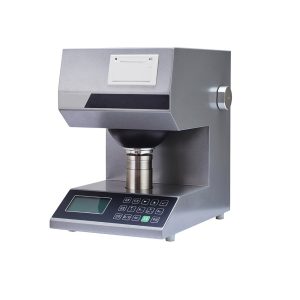

Whiteness and colorimeter
Application：
The whiteness and colorimeter is a detection instrument that measures the color, color difference and whiteness of objects based on the principle of light reflection. Used for paper, paperboard, pulp, ceramics; Powders such as cement, starch, calcium carbonate and talcum powder.
Product function:
- Measure the color and color difference reflected by the object
- Measure the brightness of D65 (blue light whiteness of R457)
- Determine the fluorescence brightening degree produced by the emission of fluorescent substances (the sample contains fluorescent brighteners)
- Determine CIE whiteness (Gantz whiteness W10 and color deviation value TW10)
- Determine the whiteness of ceramics, building materials and non-metallic mineral products
- Determine the Hunter system Lab and Hunter (Lab) whiteness
- Determine the yellowing degree and ink absorption value
- Determine the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample
Standards: ISO 2470、ISO 2471, B/T 7973、GB/T 7974、GB/T 7975、GB/T 8940.2、GB/T 1840、GB/T 13025、GB/T5950/GB/T 9338、GB/T 4739、GB/T 1543、GB/T 10339、GB/T 12911.
Specifications:
1.Power supply voltage: AC (100-240) V, (50/60) Hz, 50W
- Working environment: Temperature (10 ~ 35) ℃, relative humidity ≤ 85%
- Display: 240X128 dot matrix LCD screen
- Light source: Analog D65
- Integrating sphere: Diameter 150mm
- Sample size: Test plane ≥φ30mm, thickness ≤40mm
- Resolution: Chromaticity coordinates 0.0001, others 0.01
- Zero drift: ≤0.1
- Indication error: ≤0.5
- Repeatability error: ≤0.05 (10 consecutive tests with a 10-second interval)
- Specular reflection error: ≤0.1
- Print output: Thermal printer
- Communication interface: RS232 (optional
- Dimensions: 385×310×400 mm
- Weight: 15kg
