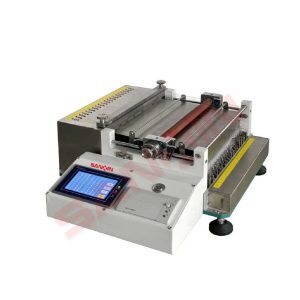

Yarn Abrasion Resistance Tester
Main Application:
YG109 Yarn Abrasion Resistance Tester is mainly used to test the abrasion resistance of single yarn and ply yarn.
Applicable standard
FZ/T 01058-1999 Yarn abrasion test method reciprocating roller method
Technical Features:
This instrument uses a uniform friction test with 20 ends, and uses an ARM microcomputer for detection and data processing. It features variable frequency speed regulation and a touch screen interface. The instrument displays the average number of abrasions per batch of yarn tested, the coefficient of variation of the number of abrasions, the maximum and minimum values, and the single value of the 20 ends.
Technical indicators
- Number of test specimens: 20
- Friction method: uniform speed
- Friction speed: about 60 times / min
- Test indicators: maximum value, minimum value, average number of frictions, coefficient of variation of friction number, single valu
- Output method: touch screen display and printing
- Tension hammer of 20- station yarn abrasion tester: weight: 5g , 10g , 15g , 20g , 25g , 30g , 35g
- Abrasive: 400# , 600# sandpaper
- Power consumption: AC 220V, 50Hz 100W
