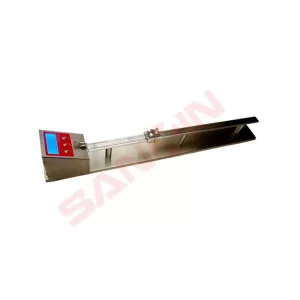

Yarn Crimp Tester SX-111

Application:
SX-111 Yarn count length gauge is mainly suitable for determining the pre-weaving length of wool woven fabrics, wool knitted fabrics and yarns for calculating their thread density and braiding density coefficient; and to determine the elasticity of elastic yarn and bulky yarn.

Standards: FZ/T01091、FZ/T01093、ISO7211、BS2863/2865/2866、IWSTM169

Specifications:
Maximum force range: 200.00cN
Indication index value: 0.1cN;
Force measurement error: ±0.5%;
Distance between left and right grippers (spacer): 0mm~1000mm;
Force calibration weights：200cN；
Data output content: liquid crystal display;
AC 220V±10% 50Hz 600W
volume：1280mm×136mm×228mm
Weight: 20Kg
