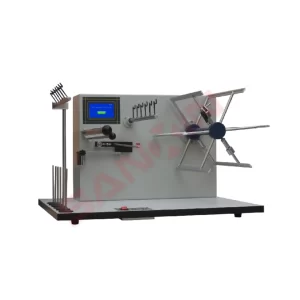

Yarn Wrap Reel Tester SX-086C

Introduction:

Electronic Yarn Length Measuring Instrument is suitable for measuring yarn linear density in textile, knitting, printing and dyeing, clothing and other industries.



Features of this instrument:

Touch screen display, input parameters, and directly display speed during operation

Single chip microcomputer control, smooth start and stop, low running noise, accurate circle counting, no circle rushing

Continuous stepless speed regulation

standards: GB/T4743, GB/T6838, GB/T14343, etc.

Main technical indicators of the instrument

1. Number of bobbins that can be reeled out: 1 to 6
2. Yarn frame circumference: 1000mm±1mm
3. Yarn frame speed: 30r/min～270r/min
4. Preset range of yarn frame turns: 2 to 9999 turns
5. Swinging reciprocating stroke: 35mm±0.5mm
6. Single yarn tension range: 0cN～100cN
7. Power supply: AC220V±10% 50Hz2.
8. Power: 95W
9. Packing size: 850mmX680mmX550mm
10. Gross weight: about 53Kg
